64-17655

B-26K-1 Invader
Builders: Douglas Aircraft Company On Mark Engineering
Operators: United States Air Force
Number Built: 40
First Built: Jan 1963 (YB-26K) First test flight
GENERAL CHARACTERISTICS
Type: Light Attack Bomber
Weight: 25,130 lbs empty 37,000 lbs loaded 39,250 lbs Maximum
Length: 51' 7 3/16" (inc. guns)
Height: 19' 0"
Wingspan: 71'6" (including wingtip tanks)
Wing Area: 540 Sq. Feet (50.17 m²)
Speed: 169 mph (cruising)
Max Speed: 323 mph
Ceiling: 28,600'
Powerplant: Pratt & Whitney R-2800-103W
Horsepower: 2,500
Fuel Capacity: 1,600 US Gallons
Range: 700 miles w/3518 lbs payload 1,480 miles empty 2,700 miles (ferry)
Crew: 2
Passengers: 1
ARMAMENT
Nose Guns: 8x .50 caliber guns
Dorsal Turret: None
Ventral Turret: None
Payload: 8,000 lbs on wings 4,000 lbs internal
Donate
Even a small donation of a couple of dollars goes a long way in helping us achieve our mission. If you appreciate the work we are doing, throw $5 our way to help us keep doing it. You don't need a PayPal account to donate. If you have questions, you check out our Donate FAQ.

See also: List of Invaders by Serial Number, Serial Numbers starting with 64

Converted from 44-34184.

Operational History

1 Nov 1964 - Accepted into USAF Inventory from OnMark at Van Nuys, CA.
2 Nov 1964 - Assigned to 605th Air Commando Squadron at Howard AFB.
NOTE: The Date of Accepted into Service is an estimate based on the implied data of the record. All other B-26K models are received at OnMark the day before they are assigned to a unit. This plane does not show a line item for being at OnMark (OMEVC), but on the single line entry for assignment to the 605th it does show that the unit gained the plane from OnMark. I suspect that it is a clerical error that resulted in this omission.

6 May 1966 - Designation changed from B-26K to A-26A while with the 605th Air Commando Squadron at Howard AFB.

29 Jun 1967 - Assigned to Sacramento Air Material Area (SMAAR) at McLellan AFB.
5 Dec 1967 - Assigned to 605th Air Commando Squadron at Howard AFB.

31 Mar 1968 - 24th Air Commando Wing at Howard AFB.
18 Apr 1968 - Assigned to 603rd Air Commando Squadron, 1st Air Commando Wing at England AFB.
7 Jul 1968 - 1st Air Commando Wing renamed to 1st Special Operations Wing at England AFB.

4 Mar 1969 - Assigned to combat support with 1st Special Operations Wing at England AFB.

1 Jul 1969 - 603rd Special Operations Squadron moved to Hurlburt Field.

23 Oct 1969 - Arrived at Davis-Monthan AFB from 606th Special Operations Squadron, 1st Special Operations Wing, Eglin AFB, FL.
It was allocated PCN AD013.

27 Oct 1969 - Security Assistance Program Hold Storage at Davis-Monthan AFB.

14 Nov 1969 - Returned to Service with 6200th Air Base Wing, Clark AFB.

16 Nov 1969 - Assigned back to Davis-Monthan. This transfer to the 6200nd ABW was on paper-only and may have been an error. The plane did not recieve a new PCN, which it would have done had it left Davis-Monthan. The plane was also listed in Flyable Storage (Code PR) during this time. It's unclear if this transfer was an error or if it was a planned transfer that was cancelled before the plane was moved.

15 Dec 1972 - Declared surplus and authorized for reclamation.

7 Mar 1980 - Sent to Allied Aircraft, Inc of Tucson, AZ.

Accidents

Unknown

Crew

Unknown

Disposition

unknown.

Images

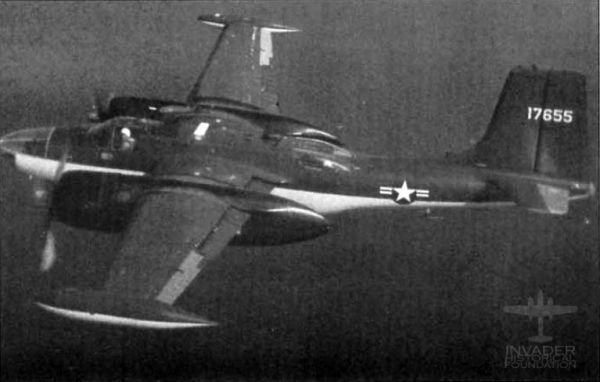

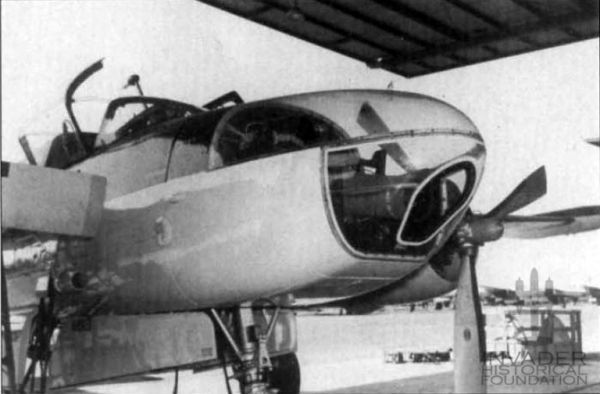

64-17655 wearing a glass nose as an RB-26K recon variant. Note the forward facing camera inside of the nose.

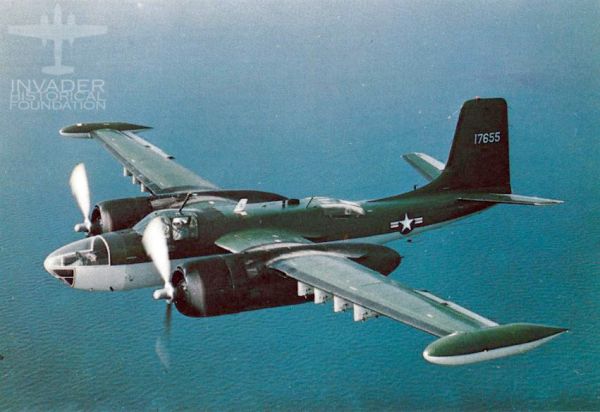

655 is shown on patrol in the Panama Canal Zone circa late 1965.

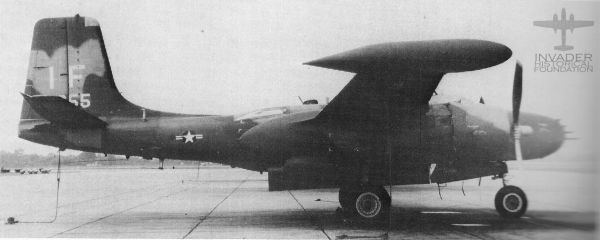

655 while serving with the 603rd Special Operations Squadron in 1969.

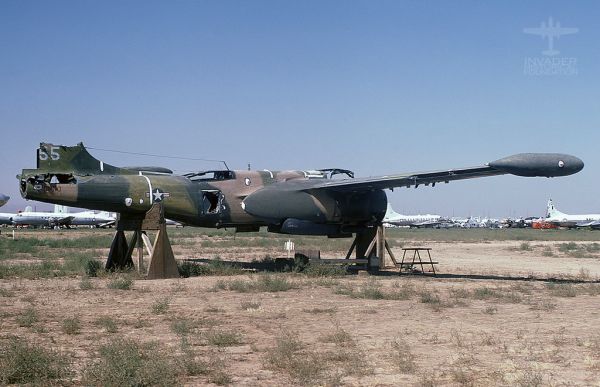

A photo by Phillip Dawe showing 64-17655 in the scrapyard at Davis Monthan.
