XA-26 Invader
Builders: Douglas Aircraft Company
Operators: United States Air Force
Ordered 1941
Number Built: 1
First Built: 1942
GENERAL CHARACTERISTICS
Type: Light Attack Bomber
Dry Weight: -
Wet Weight: -
Length: 51' 3" (15.24 m)
Height: 18' 6" (5.64 m)
Wingspan: 70' (21.34 m)
Wing Area: 540 Sq. Feet (50.17 m²)
Speed: -
Max Speed: -
Ceiling: 22,100 feet (6,700 m)
Powerplant: 2x Pratt & Whitney R-2800-27
Horsepower: 2,000
Fuel Capacity: -
Range: -
Crew: 2
Passengers: 1
ARMAMENT
Nose Guns: None
Dorsal Turret: None
Ventral Turret: None
Payload: 6,000 lbs

See also: List of Invaders by Serial Number

This plane was the first working A-26 Prototype to be fully operational. In July of 1941 Douglas built a full-sized wooden mock-up of the plane with dummy weapons to pitch to the Air Force. That initial display culminated in a contract for two operational prototypes - this plane, and 41-19505 (The XA-26A). Later, the Air Force added a third prototype, the XA-26B (41-19588).


This plane was constructed with a glass nose (many sources cite it as "glazed").


The Douglas XA-26 prototype first flew on 10 July 1942 at Mines Field, El Segundo, CA with test pilot Benny Howard at the controls. Flight tests revealed excellent performance and handling, but engine cooling problems led to cowling changes and elimination of the propeller spinners on production aircraft. Repeated collapses during testing led to reinforcement of the nose landing gear.


This plane served as the prototype for what would become the C model Invader - those equipped with glass noses to aid in bombing. One observable difference between the prototype models and the production models was the "propeller spinner" - the cone-shaped piece in the middle of the propeller blades. The prototype units were equipped with this feature, but none of the production models had them.

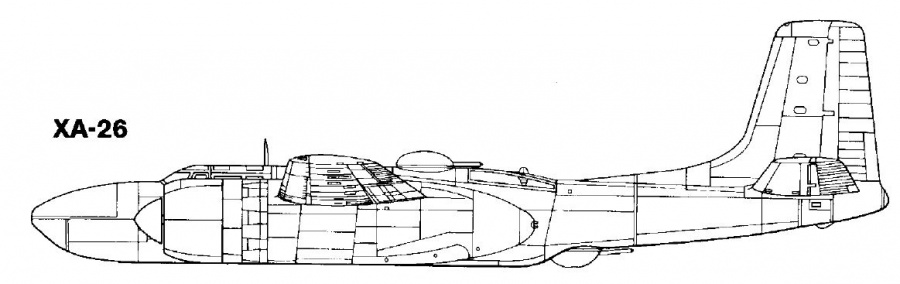

XA-26 Side.JPG

Operational History

  • 10 Jul 1942 - Test flight at Mines Field, El Segundo, CA. Purportedly the plane made additional test flights, but the exact dates of these fights is not known to me.
  • 21 Feb 1944 - Accepted into USAF Inventory at El Segundo, CA
  • 9 Jun 1944 - Flown to Wright-Patterson AFB, OH. Assigned to NACA for testing.
  • 26 Dec 1944 - Assigned to the 1454th Base Unit at Minneapolis-St.Paul, MN for Armament testing.
  • 2 Jan 1945 - Recieved by 1454th Base Unit.
  • 16 Mar 1945 - Assigned to 4000th Base Unit at Thermal Air Field, CA for Armament testing.
  • 19 Mar 1945 - Recieved by 4000th Base Unit.
  • 23 Mar 1945 - Transferred to the 4020th Base Unit at Thermal Air Field, CA for Armament Testing.
  • 10 April 1945 - Assigned to 4126th Base Unit at Wright-Patteron AFB, OH for Armament Testing.
  • 20 April 1945 - Assigned to 4000th Base Unit at Muroc Army Air Field (later known as Edwards AFB), CA.
  • 24 APR 1945 - Recieved by 4000th Base Unit.
  • 3 Jun 1945 - Recommended for scrapping.
  • 9 Jun 1945 - Approved for scrapping, struck from Inventory.



Accidents

16 MAR 1943 This plane was listed as severely damaged in a landing accident at Los Angeles Municipal Airport. The pilot was Max A. Constant. He survived the crash.

16 APR 1945 This plane was involved in a Taxi accident due to mnechamical failure at the Murroc Field Test Area. It was moderately damaged. The pilot was William H. Connell. He survived the crash.

Known Crew

  • Ed Heinemann - Designer
  • Robert Donovan - Designer
  • Ted R. Smith - Designer
  • A.M.O. Smith - Aerodynamist
  • Benny Howard - Test Pilot
  • Max A. Constant - Test Pilot
  • William H. Connell - Test Pilot

Disposition

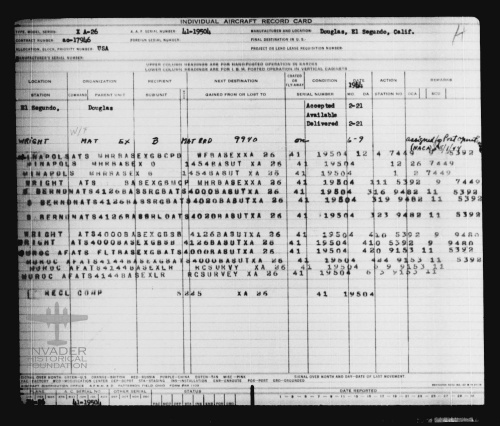

This plane was purpose built for testing. Upon completing its mission it was retired from service. Some sources list this plane as subsequently written off 16 MAR 1943. This date coincides with an accident at Los Angeles Municipal Airport which lists the plane as severely damaged. However, this date is an error. It was involved in another accident in APR 1945, and it's official inventory control card shows that it remained in service until 9 JUN 1945.

Images

Luckily, being a prototype model, there are many images of this plane. This Prototype was the only prototype version to feature a glass nose. The other two had solid noses. One thing that is noteworthy of the photos of this plane is that when it was built the ground crew accidentally applied the incorrect serial number on the tail. As a result, many of the photos show the plane with "219504", but it should read "119504". Photos without a tail number were taken between the test flight in Jul 1942 and the acceptance into inventory in 1944.

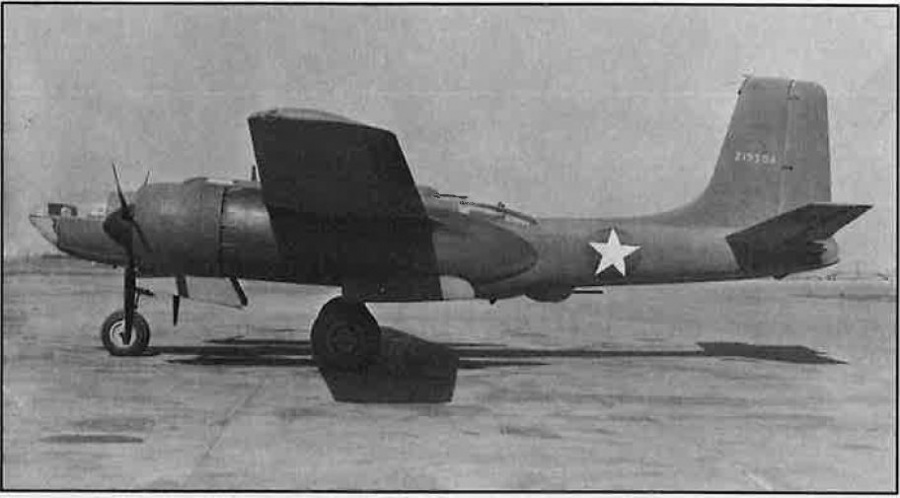

The XA-26 Protorype on the ramp.
XA-26 profile.jpg
XA-26 front.jpg
41-19504 front.jpg

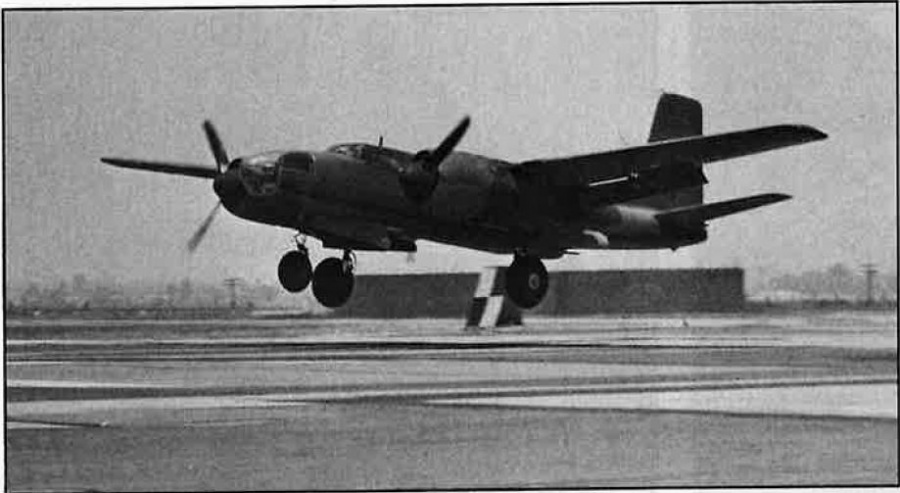

The XA-26 Prototype during takeoff, 10 JUL 1942.
XA-26 First flight.jpg
XA-26 Prototype.jpg

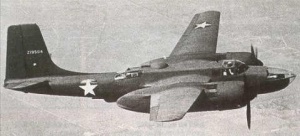

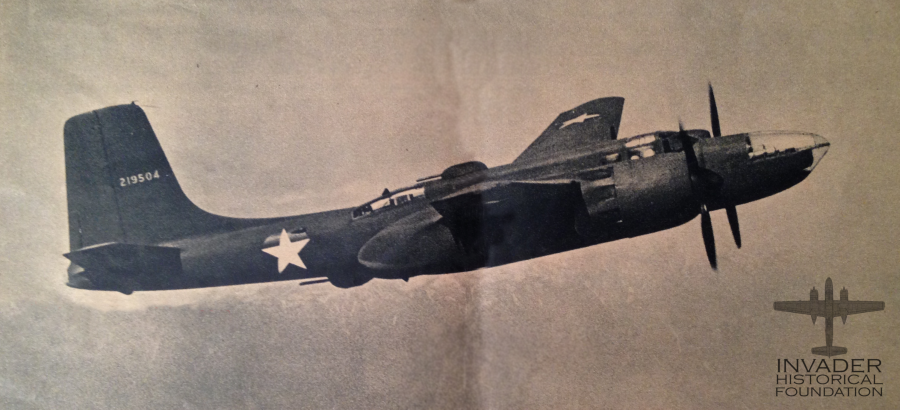

The XA-26 Protoype in flight.

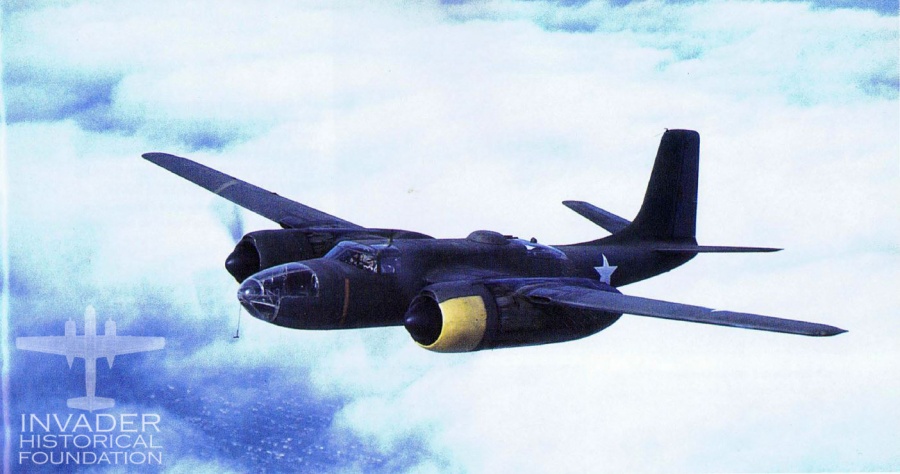

41-19504 Over CA.jpg
41-19504 in flight.jpg
41-19504 XA26.jpg
41-19504. XA-26. 1942. WM.jpg

Sources

  • Douglas A-26 Production List
  • United States Air Force Accident Reports
  • United States Air Force Individual Aircraft Record Card
  • Francillon, René. McDonnell Douglas Aircraft Since 1920: Volume I. London: Putnam, 1979. ISBN 0-87021-428-4.
  • Smith, A.M.O., "High-Lift Aerodynamics; the 37th Wright Brothers Lecture", AIAA paper 74-939, reprinted in the AIAA Journal of Aircraft, Vol. 12 No. 6, June 1975.
  • Lednicer, David. The Incomplete Guide to Airfoil Usage. Champaign, Illinois: UIUC Applied Aerodynamics Group, 2010. Retrieved: 18 May 2011
  • Mesko, Jim. A-26 Invader in Action (Aircraft Number 37). Carrollton, Texas: Squadron/Signal Publications, 1980. ISBN 0-89747-093-1.
